V1.75 Magnesium Anodes Cathodic Protection Anodes Mg S Type

  • V1.75 Magnesium Anodes Cathodic Protection Anodes Mg S Type
  • V1.75 Magnesium Anodes Cathodic Protection Anodes Mg S Type
  • V1.75 Magnesium Anodes Cathodic Protection Anodes Mg S Type
Place of Origin CHINA
Certification USA: G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Magnesium Anodes Material High Purity Magnesium
Application Protection For Petroleum Pipelines Adventage Better Electrochemical Properties
Service OEM / OEM Technical Standard GB/T 17731-2015
High Light

V1.75 Magnesium Anodes Cathodic Protection

,

Cathodic Protection Anodes Mg S Type

,

V1.75 Cathodic Protection Anodes Mg
Leave a Message
Product Description

Negative Potential Magnesium Anode Cathodic Protection For Metal Anticorrosion



Introduction:



Magnesium anodes are also known as soft water anodes, and they protect steel by sacrificial electrochemical action. This type of galvanic protection is called "sacrificial"; magnesium rods (anode) corrode instead of steel (cathode). This principle of electrolytic corrosion control is referred to as "cathodic protection". The steel is protected because the cathode surface will not rust.


Cathodic protection is often used to mitigate corrosion damage to active metal surfaces. It is used worldwide for the protection of pipelines, water treatment plants, above and submerged storage tanks, ships and hulls, offshore production platforms, concrete structures and rebar in docks, etc.



Parameters:



Our products have the following specifications:

  • " D " anode
  • " R " Cylindrical anode
  • " S " anode

Chemical composition %



Alloy Al (max) Mn Si (max) Cu (max) Ni (max) Fe (max) Other impurity (each) Total impurities
(max) (max)
Mg- Mn 0.01 0.50-1.30 0.05 0.005 0.001 0.03 0.05 0.3



The electrochemical performance



Open voltage Closed voltage Actual capacity Efficiency
1.70-1.75 1.58-1.62 1230 min 50 min



Features:



Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.



Applications:



Cathodic protection is often used to mitigate corrosion damage to active metal surfaces. It is used worldwide to protect pipelines, water treatment plants, above and submerged storage tanks, ships and hulls, offshore production platforms, concrete structures and rebar in docks, among others.



Photos:

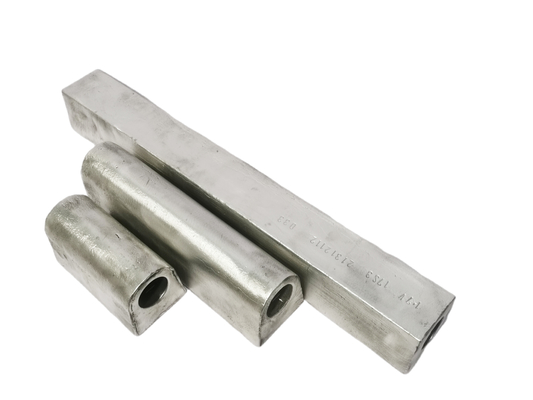

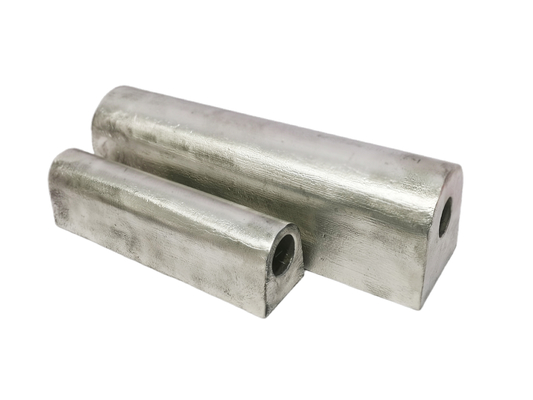

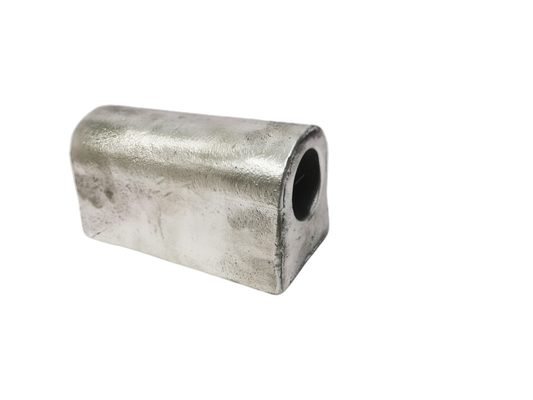

V1.75 Magnesium Anodes Cathodic Protection Anodes Mg S Type 0
