PVC Prepackaged Magnesium Anode Cathodic Protection Backfill

  • PVC Prepackaged Magnesium Anode Cathodic Protection Backfill
Place of Origin CHINA
Certification USA: G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Magnesium Anode Assembly Environmental Protection Easily Recycled
Insulation Materials PVC/PVC,XLPE/PVC,HMWPE Electric Cable 6 Mm2,10 Mm2 And 16 Mm2
Fillings Mixing 75%gypsum Powder,20%bentonite And 5%Na2504 Electric Resistance <0.001
Connection Strength 5 Times The Weight Of The Assembled Anodes
High Light

PVC Prepackaged Magnesium Anode

,

Prepackaged Magnesium Anode Backfill

,

Anode Cathodic Protection Backfill
Leave a Message
Product Description

Environmental Friendly Prepackaged Magnesium Anode Improve Project Construction Efficiency



Introduction:



The sacrificial magnesium alloy anode can be provided to our clients after assembling. The bare anode is firstly connected with an electric cable with the connecting point being sealed using epoxy resin. Then the assembled products, together with special fillings, are encapsulated in cotton bags.


Based on the principle of environmental protection, our products can be easily recycled or degraded without
releasing any toxic substances.


The common insulation materials include PVC/PVC, XLPE/PVC, and HMWPE.



The specifications of the electric cable are as the following:6 mm2,10 mm2 and 16 mm2.


The fillings are produced by mixing 75%gypsum powder,20%bentonite, and 5%Na2504.



The assembled magnesium alloy anode can satisfy the following specification:
electric resistance:<0.001
Connection strength: better than 5 times the weight of the assembled anodes.



Assembly configuration:



1. One sacrificial anode of any type.

2. One cable wire: welded on the sacrificial anode according to the length and specification required by the customer, and sealed with epoxy resin and dibutyl ester with glass wire or polyvinyl chloride heat shrinkable sleeve according to the proportion.

3. A pack of special fillers.

4. A set of aluminothermic flux.

5. One anode cloth bag.



Cd(max) As(max) Hg(max) Pb(max)
1ppm 1ppm 1ppm 10ppm



Features:



Magnesium alloy is an ideal sacrificial anode material because of its negative anode potential, large electricity generation per unit mass and long service life. As an ideal sacrificial anode material, magnesium alloy also has the following characteristics

(1) Small specific gravity and negative potential

(2) High driving voltage for iron and low current efficiency

(3) Especially suitable for high resistivity medium. (For resistivity greater than 100Ω·m, it is recommended to use strip magnesium anode)



Application:



Magnesium alloy sacrificial anode is suitable for anti-corrosion protection of oil, gas, water supply and drainage pipelines, underground cables, chemical industry, communications, harbors, ships, reservoir gates and other projects in soil and freshwater media.

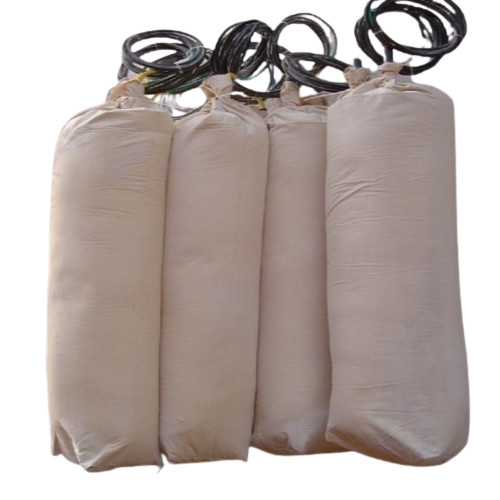

Photos:
