ASTM Magnesium Anode Bag 17 Lb 75% Gypsum Anti Corrosion
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Anode Assembly | Environmental Protection | Easily Recycled |
|---|---|---|---|
| Insulation Materials | PVC/PVC,XLPE/PVC,HMWPE | Electric Cable | 6 Mm2,10 Mm2 And 16 Mm2 |
| Fillings | Mixing 75%gypsum Powder,20%bentonite And 5%Na2504 | Electric Resistance | <0.001 |
| Connection Strength | 5 Times The Weight Of The Assembled Anodes | ||
| High Light | ASTM Magnesium Anode Bag 17 Lb,Magnesium Anode Bag 17 Lb 75% Gypsum,75% Gypsum Anode Anti Corrosion |
||
Product Description
Non - Toxic And Harmless Prepackaged Magnesium Anode Increase Construction Speed
Introduction:
The pre-packaged magnesium alloy sacrificial anode is mainly composed of a magnesium alloy sacrificial anode, a special heat shrinkable sleeve and a cable. The pre-packaged magnesium alloy sacrificial anode is developed to simplify the rapid on-site construction. The original operation on the construction site is completed in the factory, which effectively ensures the construction and installation quality of the anode bed.
Executive standard GB/T17731-2009 "Magnesium Alloy Sacrificial Anode" GB/T21448-2008 "Technical Specification for Cathodic Protection of Buried Steel Pipelines"
Specification:
| Number | Model | Diameter (mm) | Length(mm) | Weight(kg) |
| 1 | SSD-MG-5D2 | 127 | 450 | 8.2 |
| 2 | SSD-MG-9D2 | 140 | 690 | 16 |
| 3 | SSD-MG-9D2-1 | 130 | 810 | 16 |
| 4 | SSD-MG-20D2 | 140 | 1650 | 38 |
| 5 | SSD-MG-5D3 | 160 | 300 | 9 |
| 6 | SSD-MG-9D3 | 160 | 550 | 16 |
| 7 | SSD-MG-17D3 | 160 | 780 | 22 |
| 8 | SSD-MG-35D5 | 200 | 680 | 30 |
| 9 | SSD-MG-48D5 | 205 | 960 | 45 |
| 10 | SSD-MG-R50 | 160 | 480 | 13.5 |
| 11 | SSD-MG-R77 | 175 | 640 | 22 |
| 12 | SSD-MG-R100 | 175 | 710 | 25 |
| 13 | SSD-MG-R145 | 200 | 650 | 30 |
| 14 | SSD-MG-R273 | 175 | 1650 | 58 |
Please inform the magnesium alloy sacrificial anode specification, the required size and length of the cable when ordering.
Composition:
A complete set of magnesium sacrificial anode, consisting of 1 magnesium sacrificial anode ingot, a VV-10mm2 cable 3 meters, a packing material of 50kg, a cotton pocket, and a plastic woven bag. That is, there is 1 magnesium sacrificial anode ingot in the cotton pocket, and 1 VV-10mm2 cable 3 meters is welded on the iron core. The welding place is insulated and covered with heat shrinkable tube. 50kg of packing material is evenly distributed around the magnesium sacrificial anode ingot. 1 plastic woven bag for cotton pocket jacket.
Application:
Magnesium alloy sacrificial anode is suitable for anti-corrosion protection of oil, gas, water supply and drainage pipelines, underground cables, chemicals, communications, harbors, ships, reservoir gates and other projects in underground and fresh water. Magnesium alloy anodes are produced with high-quality raw materials. The anode potential is negative and the amount of electricity generated per unit mass is large. It is an ideal sacrificial anode material. It is suitable for cathodic protection of metal structures in media such as soil, fresh water and sea water, such as oil and gas pipelines, storage tanks, hot water exchangers, condensers, etc.

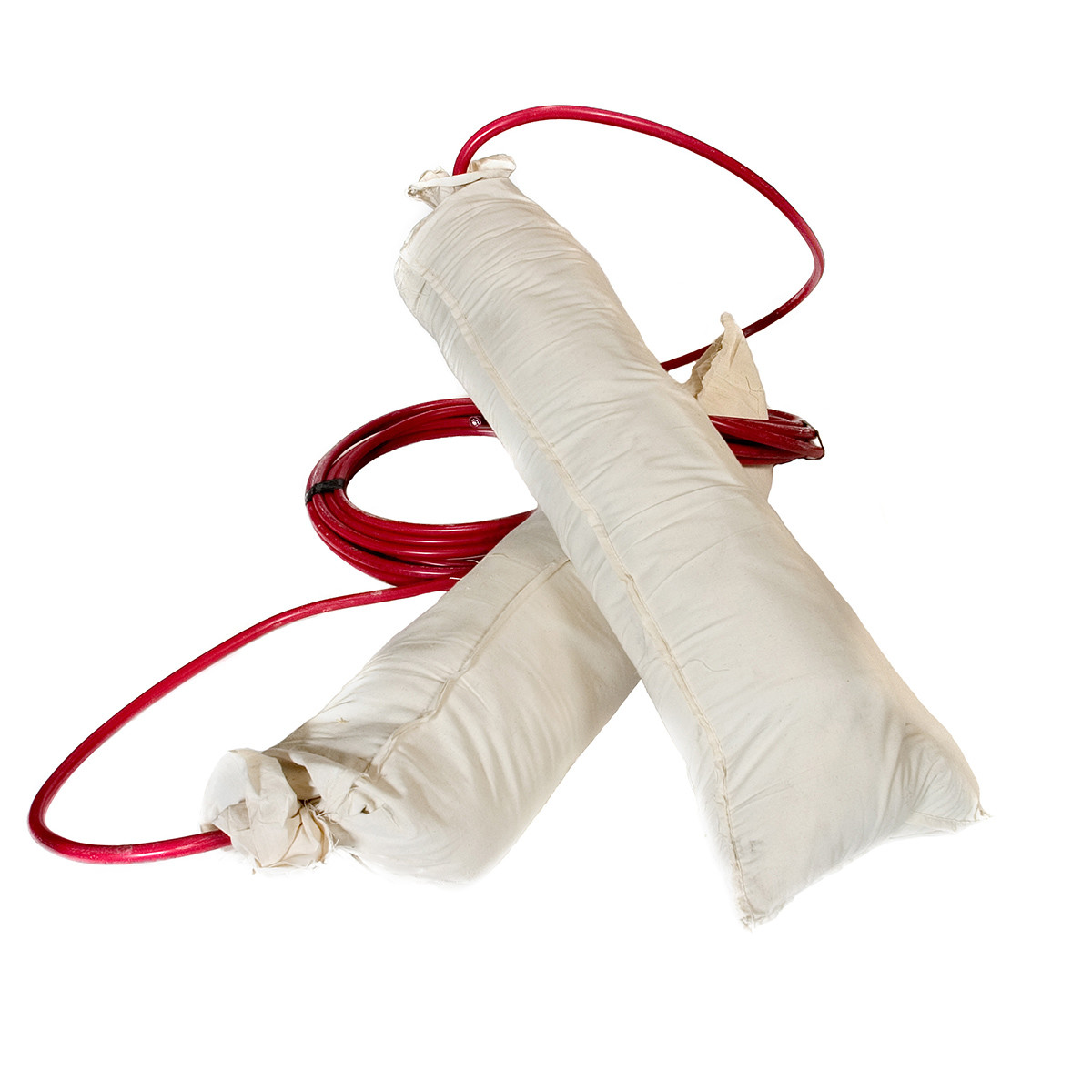

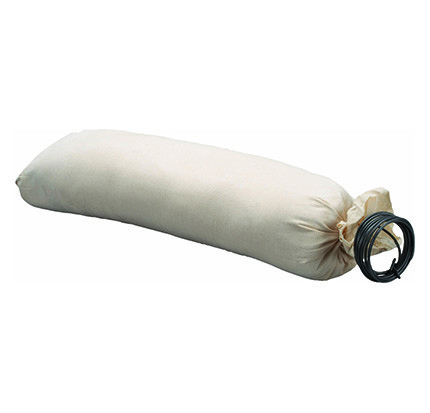

Photos:
