Astm Mg Anode 20% Bentonite Magnesium Bag Installation

  • Astm Mg Anode 20% Bentonite Magnesium Bag Installation
  • Astm Mg Anode 20% Bentonite Magnesium Bag Installation
Place of Origin CHINA
Certification USA: G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Magnesium Anode Assembly Environmental Protection Easily Recycled
Insulation Materials PVC/PVC,XLPE/PVC,HMWPE Electric Cable 6 Mm2,10 Mm2 And 16 Mm2
Fillings Mixing 75%gypsum Powder,20%bentonite And 5%Na2504 Electric Resistance <0.001
Connection Strength 5 Times The Weight Of The Assembled Anodes
High Light

Mg Anode 20% Bentonite

,

20% Bentonite Magnesium Anode Bag Installation

,

Astm Magnesium Anode Bag Installation
Leave a Message
Product Description

Low Cable Connection Resistance Prepackaged Magnesium Anode Improve Project Construction Efficiency



Introduction:



According to the principle of electrochemistry, cathodic current is provided from the alloy anode material body through the electrolyte such as soil and water to the protected body such as the steel structure, so that the protected steel structure is cathodized to realize cathodic protection. As the current continues to flow, the anode material is continuously consumed. This is the origin of the name of the sacrificial anode.



Assembly configuration:



1. One sacrificial anode of any type.

2. One cable wire: welded on the sacrificial anode according to the length and specification required by the customer, and sealed with epoxy resin and dibutyl ester with glass wire or polyvinyl chloride heat shrinkable sleeve according to the proportion.

3. A pack of special fillers.

4. A set of aluminothermic flux.

5. One anode cloth bag.



gypsum powder Filler formula, wt% Applicable conditions
(CaSo4.2H2o) Na2SO4 Mg2SO4 bentonite
50 0 0 50 ≤20Ω.m
25 0 25 50 ≤20Ω.m
75 5 0 20 ≥20Ω.m
15 15 20 50 ≥20Ω.m
15 0 35 50 ≥20Ω.m



Cd(max) As(max) Hg(max) Pb(max)
1ppm 1ppm 1ppm 10ppm



Features:



Magnesium alloy is an ideal sacrificial anode material because of its negative anode potential, large electricity generation per unit mass and long service life. As an ideal sacrificial anode material, magnesium alloy also has the following characteristics

(1) Small specific gravity and negative potential

(2) High driving voltage for iron and low current efficiency

(3) Especially suitable for high resistivity medium. (For resistivity greater than 100Ω·m, it is recommended to use strip magnesium anode)

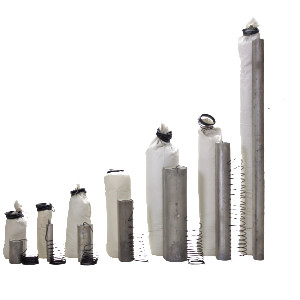

Photos:

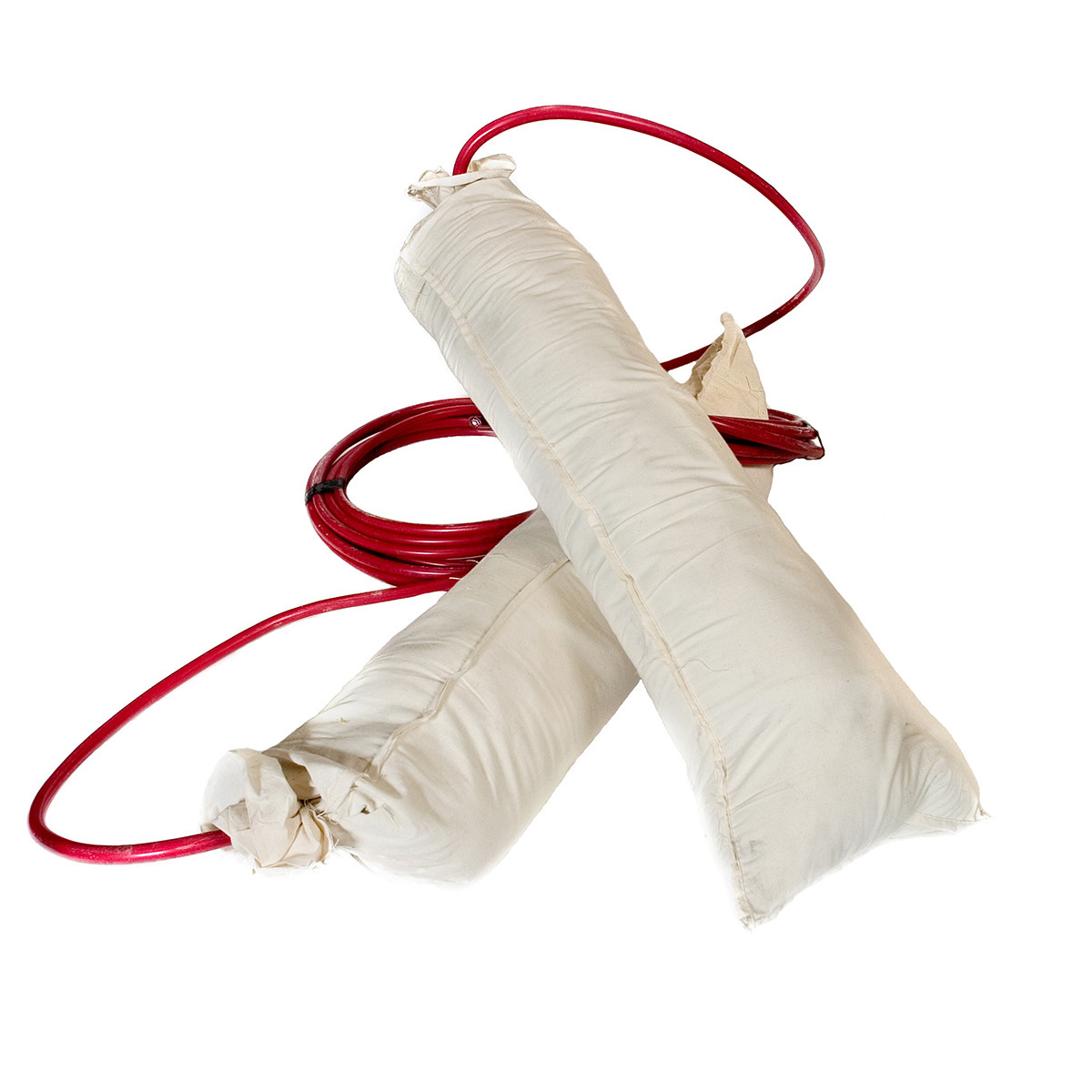

Astm Mg Anode 20% Bentonite Magnesium Bag Installation 0
